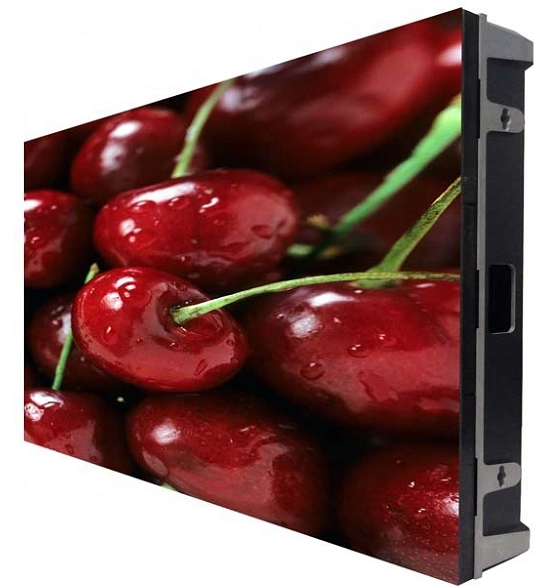

HD GOB Waterproof, Dustproof And Moisture-Proof 8K Indoor Full-Color LED Screen

Name: HD GOB Waterproof Dustproof And MoistureProof 8K Indoor FullColor LED Screen
Brand: SCXK
Price: 2000 USD

Wholesale HD GOB Waterproof, Dustproof And Moisture-Proof 8K Indoor Full-Color LED Screen from china suppliers

Brand Name : SCXK

Model Number : P2.5

Certification : CE,ROHS,FCC,SASO

Place of Origin : China

MOQ : 1 SQM

Price : USD 2000-1000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 sqm per month

Delivery Time : 7 working days

Packaging Details : Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm

Step Pixels : 2.5mm

LED Shape & Size : 2.5mm SMD 2121

Module Dimension : 320 mm x 160 mm

Module Resolution : 128 x 64

Module Weight : 0.5kg

Cabinet Size : 640*640mm

Brightness : ≥1300cd/sqm

Cabinet size : 480*480mm*68mm

Contact Now

High Definition Popular GOB Waterproof Dustproof Dampproof 4K 8K Indoor Full Color LED Screens

Product Advantage

1. The back of the module is plated with conformal coating to ensure that the GOB led screen is waterproof

2. The GOB led screen is moisture-proof and can effectively prevent more than 85% of dead light problems.

3. The front of the module is plated with special materials to protect the LED from collision, so the GOB led screen has anti-collision function.

4. The GOB led screen can be used indoors or outdoors.

5. It looks like an acrylic sheet covering the module, which can effectively prevent the LED lights from being hit.

6. The GOB led screen can be used for rental or fixed.

Pamameter

Module Parameters
Pixel Pitch		2.5mm
Pixel Configuration		1R1G1B
Density		160000 pixels/sqm
LED Lamp		SMD2121
Module Size		320*160mm
Module Resolution		(W)128Pixels * (H)64Pixels
Working Voltage		DC5V
Scan Mode		1/32 Scan
Drive IC		MBI 5124(Can be customized)
Port Type		HUB75
Screen Parameters
Cabinet Size		(W)640*(H)640mm
Cabinet Material		Die-casting aluminum
Cabinet Weight		5.76KG
Cabinet Resolution		256*192 Pixels
Module Qty		8 pcs
Power Supply		200W
Working Voltage		AC220V±10%
Max Power Consumption		600W/sqm
Ave Power Consumption		200W/sqm
Brightness		800 Nits
Refresh Rate		1920Hz/ 3840Hz
Frame Frequency		60Hz
Grey Scale		14 bit
Brightness Level		256 levels
Best View Distance		2.5M-50M
View Angle		120°(Horizontal); 120°(Vertical)
Protection Degree		IP30
Working Temperature		-20℃ ~ +60℃
Relative Humidity		10%-95%
Operation system		WIN7/WIN8
Control Method		Synchronous or Asynchronous
Control System		NovaStar
Receiving Card		MRV336
Control Distance		100M(Ethernet cable); 20KM(Optical fiber cable)
Input Signal		Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Out-of-Control Pixel Rate		≤0.01%

Detailed Picture

HD GOB Waterproof, Dustproof And Moisture-Proof 8K Indoor Full-Color LED Screen

load testing for GOB led screen P2.5

Its not dance floor led screen.

Only to prove that our film coating technology is good enough to bear over 50kg weight .

HD GOB Waterproof, Dustproof And Moisture-Proof 8K Indoor Full-Color LED Screen

Our Service

 1) Your inquiry about products or prices will be responded within 24 hours  2) OEM and ODM, we can help you design any customized lamps and put them into products  3) Provide distribution rights for your unique designs and some of our current models  4) Protect your sales area, design ideas and all private information  5) Top quality + reasonable price + responsible after-sales service = success and victory
